How to Choose a Small Paper Pulp Making Machine?

Choosing a small paper pulp making machine is not simply a matter of finding the lowest quoted price. The right equipment must match your raw materials, daily output, water supply, workspace, and paper quality targets. Cardboard waste, office paper, and agricultural fibers behave differently inside the pulping chamber. A machine that handles clean office paper may struggle with wet cartons or heavily printed stock.

Paper-technology researcher Hannu Paulapuro emphasized, “The quality of paper depends on the quality of the fiber preparation.” This principle remains practical when comparing a small paper pulp making machine. Ask whether the machine provides even disintegration, effective impurity removal, and adjustable refining. Inspect the screen openings, rotor design, motor protection, and pulp discharge system. These small details affect fiber length, smoothness, and production stability.

Capacity matters.

Do not trust impressive brochure figures alone. Test the machine with your actual paper waste, because moisture and contamination can reduce output sharply. A compact unit may claim one ton daily, yet your site might achieve less after sorting, washing, and maintenance. That is not necessarily a failure. It is a realistic operating gap that deserves careful planning. Energy consumption, spare-part availability, cleaning time, and operator training also influence long-term cost. Choose a supplier willing to provide test data, installation guidance, and clear warranty terms. The cheapest machine can become expensive when screens clog, bearings overheat, or technical support disappears. A careful decision balances performance, durability, simplicity, and the conditions of your own workshop.

Table of Contents [Hide]

1 Understanding the Role of a Small Paper Pulp Making Machine

2 Assessing Raw Materials and Required Pulp Quality

3 Comparing Machine Capacity, Features, and Energy Use

4 Checking Installation, Operation, and Maintenance Requirements

5 Evaluating Costs, Safety Standards, and Supplier Support

Understanding the Role of a Small Paper Pulp Making Machine

How to Choose a Small Paper Pulp Making Machine?

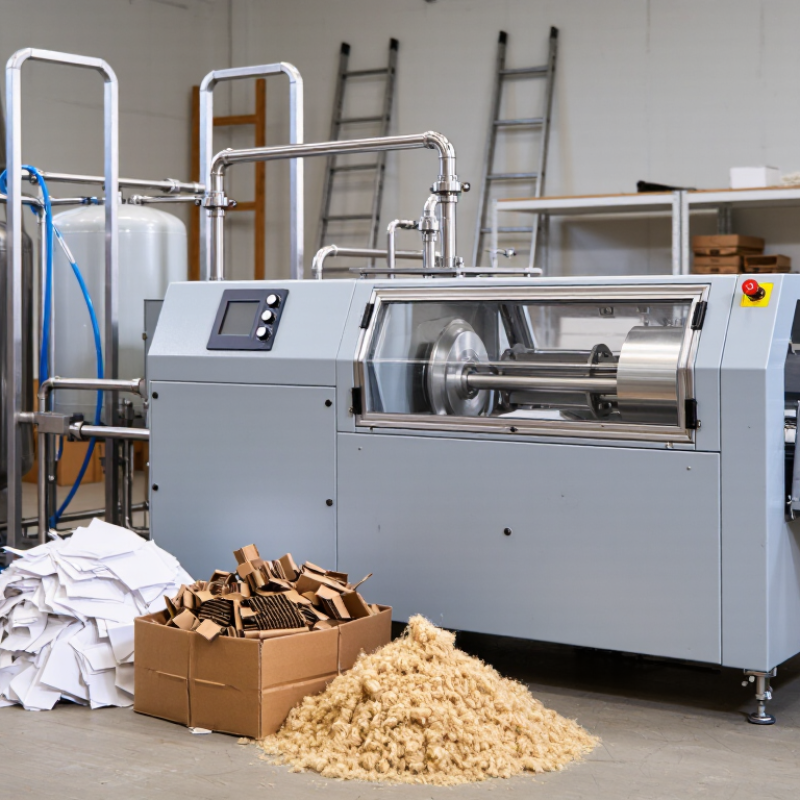

A small paper pulp making machine converts waste paper, water, and controlled energy into usable pulp. Its role is more important than its compact size suggests. In a small workshop, it can reduce manual soaking and produce a more consistent fiber mixture. During practical trials, operators often check pulp texture by hand. Smooth pulp feels even, while dry flakes reveal poor mixing. A machine with adjustable speed helps process newspapers, office paper, and cardboard more carefully. However, not every unit handles thick cardboard well. That detail is easy to overlook.

The machine also supports resource efficiency. A suitable design can limit water waste through a manageable tank and simple drainage system. Durable blades, protected electrical parts, and accessible cleaning areas improve daily reliability. Operators should examine production capacity, power requirements, noise, and maintenance access before buying. A lower price may seem attractive, but frequent blade replacement can increase long-term costs. Sometimes, a slower machine produces better pulp. This is not always convenient.

Tips: Test a small batch first. Measure pulp output and water use. Inspect the screen after cleaning. Ask whether spare parts are readily available. Leave space around the machine for safe operation. Keep written maintenance records, even for a small workshop. One overlooked measurement can affect sheet strength. If the pulp remains uneven, adjust soaking time before changing the machine.

Assessing Raw Materials and Required Pulp Quality

How to Choose a Small Paper Pulp Making Machine?

Raw material determines whether a small pulp machine performs steadily or struggles daily. Recovered paper, cardboard, and agricultural fibers need different preparation methods. Check moisture, fiber length, ink, wax, plastic, and adhesive content before choosing equipment. Dirty feedstock increases screening pressure and may damage pumps. Measure it carefully. A simple material test can reveal problems early. In practical trials, collect several samples instead of trusting one clean batch. Suppliers often receive ideal samples, while operators process mixed materials.

Required pulp quality should guide the machine configuration. Packaging pulp may tolerate lower brightness and moderate fiber variation. Writing paper needs better cleanliness, refining control, and stable fiber distribution. Tissue production usually demands soft, well-formed pulp with carefully controlled freeness. Ask for measurable targets, including consistency, brightness, drainage rate, tensile strength, and visible dirt count. These figures are more useful than vague claims about “high quality.” The desired output affects the pulper, pressure screen, cleaner, refiner, and dewatering system.

Small equipment still requires careful process control. A compact machine may save space, but limited screening capacity can reduce quality with heavily contaminated stock. Operators should test the pulp after each stage, especially after screening and refining. Keep records of water use, motor load, and rejected material. Some assumptions may be wrong. A machine suited to clean office paper could perform poorly with waxed cartons or long agricultural fibers. That weakness should be identified before purchase.

How to Choose a Small Paper Pulp Making Machine? - Assessing Raw Materials and Required Pulp Quality

The following figures are typical planning ranges for small-scale systems. Actual results depend on fiber condition, contaminants, operating consistency, and the target paper grade.

Raw Material	Typical Fiber and Contaminant Profile	Recommended Pre-Treatment	Suitable Small-Machine Configuration	Typical Screened Pulp Yield	Expected Pulp Quality	Best-Fit Paper Applications
Sorted office paper	Mostly bleached chemical pulp; relatively long fibers; may contain staples, clips, plastic windows, coatings, and toner.	Manual sorting, bale opening, coarse shredding, magnetic separation, and removal of plastic contaminants.	Hydrapulper or batch pulper, coarse and fine screening, reject separator, and optional deinking stage.	75–85%	Bright to medium-bright recycled pulp; good formation and strength after effective ink removal.	Writing paper, copier paper blends, tissues, molded fiber products, and light packaging grades.
Old corrugated containers	Predominantly unbleached kraft fibers; moderate fiber shortening; commonly contains tape, labels, wax, and plastic pieces.	Sorting, wire and tape removal, bale breaking, and coarse contaminant separation.	Low-consistency pulper, coarse screen, pressure screen, and reject handling system; deinking is usually unnecessary.	80–90%	Brown or gray pulp with good bulk and compression strength; brightness is normally limited.	Corrugating medium, linerboard blends, cartons, egg trays, and protective packaging.
Old newspapers and magazines	Shorter mechanical-pulp fibers; high filler content; substantial ink, coating, and fine-particle load.	Sorting, shredding, pulping with controlled chemistry, flotation deinking, and fine screening.	Batch pulper, flotation cell, fine pressure screen, thickener, and pulp storage chest with agitation.	65–78%	Medium-bright pulp with relatively short fibers; excessive processing can reduce final strength.	Newsprint blends, tissue furnish, molded fiber, and low-to-medium brightness paper products.
Mixed recycled paper	Variable blend of office paper, packaging, newspapers, fillers, adhesives, and plastic contaminants.	Detailed sorting, contaminant inspection, shredding, and staged coarse and fine screening.	Flexible batch pulper with adjustable residence time, contaminant separator, pressure screen, and reject press.	65–82%	Variable brightness, drainage, and strength; quality improves when the incoming mix is tightly controlled.	General packaging paper, cartonboard, tissue blends, and molded pulp products.
Agricultural fiber residues	Fibers may include straw, bagasse, or similar residues; higher ash, silica, waxes, and non-fibrous material than recovered paper.	Dry cleaning, chopping, washing, chemical pretreatment, and removal of pith or excess fines where applicable.	Fiber cutter or chopper, batch pulper, washing unit, coarse screen, and optional refining equipment.	45–70%	Moderate strength and drainage; pulp properties vary significantly with fiber maturity and pretreatment.	Specialty paper, molded packaging, disposable food-service items, and blended paper products.
Bleached kraft pulp sheets or production trim	Long, clean chemical-pulp fibers with low contaminant content; normally easy to disperse in water.	Cutting or bale opening; limited cleaning is required if the material is uncontaminated.	Simple batch pulper, light refining, stock chest, and basic screening system.	90–98%	High cleanliness and strength potential; suitable for controlled furnish preparation.	Fine paper, tissue, filter paper, specialty grades, and strength improvement blends.

Selection guidance: For a small paper pulp line, prioritize raw-material consistency before maximum machine capacity. A system handling 500–1,500 kg of air-dry recovered paper per batch commonly requires a pulper, contaminant removal, screening, pulp storage, and water-recirculation equipment. Choose deinking, washing, or refining modules only when the required brightness, cleanliness, drainage, or strength justifies the additional water, energy, and maintenance demand.

Comparing Machine Capacity, Features, and Energy Use

Choosing a small paper pulp making machine starts with capacity, not appearance. A workshop producing 100 kilograms daily needs different equipment from a community mill targeting 500 kilograms. Calculate dry-fiber output, not tank volume. Wet pulp can look impressive while producing little usable material.

During a pilot setup, I would measure one complete batch, including soaking, pulping, screening, and cleaning. The European Commission’s Best Available Techniques Reference Document for Pulp, Paper and Board reports that stock preparation electricity can vary widely, often from about 100 to over 300 kWh per tonne. This makes motor efficiency and operating time more important than advertised horsepower. My first estimate was too optimistic.

Features should support stable production. A variable-speed pulper, removable screens, overload protection, and accessible bearings reduce practical downtime. Automatic controls are useful, but they can increase purchase and maintenance costs. The International Energy Agency identifies pulp and paper as a significant industrial energy user, so compare kWh per tonne under similar feedstock conditions, not empty-machine measurements.

Ask for test data using your actual waste paper. Small details matter. A machine using 12 kWh for a 50-kilogram batch consumes 240 kWh per tonne before screening losses. That figure may be acceptable for short runs, but not for daily production. Check the EU BREF, supplier test records, and your own electricity tariff before choosing capacity.

Checking Installation, Operation, and Maintenance Requirements

How to Choose a Small Paper Pulp Making Machine?

Choosing a small paper pulp making machine requires more than checking output capacity. Installation conditions often decide whether production stays stable. Measure the doorway, floor strength, drainage route, and electrical supply before purchase. A compact machine still needs working space around pumps, screens, and control panels. Leave room for cleaning. Ask the supplier for a foundation drawing, utility list, and commissioning procedure. In my experience, unclear installation details create expensive delays. A small mistake matters.

Operation should be simple enough for trained staff to understand quickly. Check whether the machine provides clear controls, emergency stops, overload protection, and accessible inspection points. Confirm the recommended pulp consistency, water temperature, and feeding speed. Operators should record noise, vibration, motor temperature, and production changes during each shift. These details help identify wear before a breakdown. Even experienced workers can skip a check during busy periods. That weakness needs a practical routine, not blame.

Tips

Keep spare seals, screens, belts, and lubrication materials nearby. Clean pulp residue from contact areas after every production cycle. Follow the maintenance intervals in the technical manual, but review them against actual working hours and fiber quality. Inspect electrical connections with qualified personnel. Do not improvise with missing guards or damaged cables. Take photos during installation; they can reveal alignment problems later. I would also test the machine under a partial load first, although this step is sometimes overlooked.

How to Choose a Small Paper Pulp Making Machine?

Checking installation, operation, and maintenance requirements is essential before purchase. The chart shows a practical baseline for how frequently each area should be checked during normal operation.

Inspection intervals are general planning guidelines. Always follow the machine supplier’s technical documentation, safety procedures, and local regulations.

Evaluating Costs, Safety Standards, and Supplier Support

How to Choose a Small Paper Pulp Making Machine?

Evaluating Costs, Safety Standards, and Supplier Support

The cheapest machine is rarely the cheapest choice. Compare purchase price, electricity use, water demand, maintenance, and replacement parts. A small unit may need a 5–10 kW motor, depending on capacity and pulp consistency. Ask for a written production estimate based on your raw material. Numbers can change in real workshops.

Safety deserves equal attention. Look for guarded moving parts, an accessible emergency stop, overload protection, and clear operating instructions. Confirm that electrical components meet the standards required in your location. Request a documented risk assessment, installation guide, and operator training. A machine that is powerful but difficult to clean can create avoidable hazards. This detail is easy to overlook.

Tips: Ask the supplier for three references with similar workloads. Check response times before paying a deposit. Confirm whether spare screens, seals, and motor parts are locally available. Read the warranty carefully, especially its limits on wear items. Do not rely only on a polished video. During one practical evaluation, a promised output seemed realistic, but the test used unusually dry material. That result needed more questioning. A short trial with your own feedstock is safer. Supplier support should include troubleshooting, maintenance schedules, and honest limits, not only sales promises.
